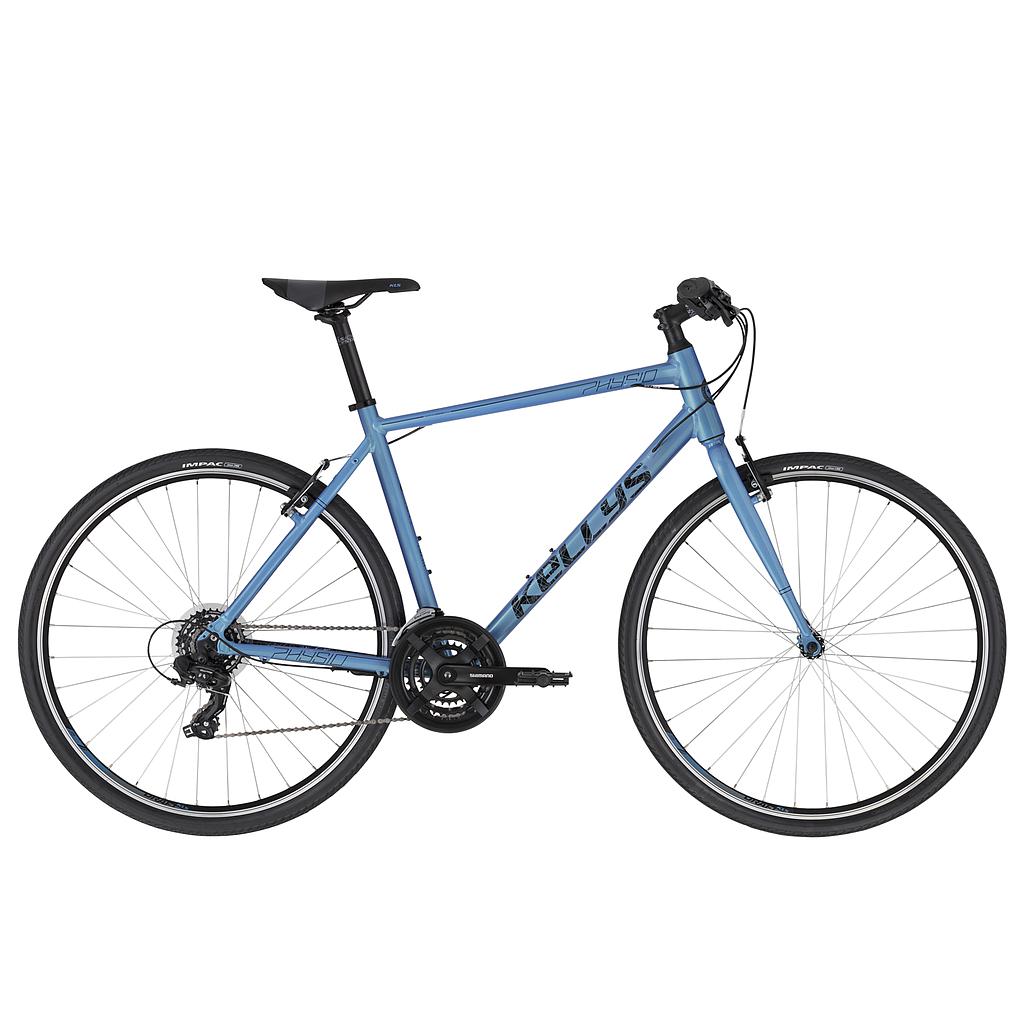

frame KELLYS Urban Move Concept - Aluminium alloy, internal routing
frame size S / M / L
fork hi-ten steel
head parts semi-integrated
b.b.parts cartridge (122mm)
crankset SHIMANO FC-TY301 (48x38x28T) - length 170mm (S), 175mm (M - L)
shifters SHIMANO ST-EF41-7 EZ-fire Plus
f/derailleur SHIMANO TY510 (34.9mm)
r/derailleur SHIMANO TY300 (direct mount)
speed 21
cassette sprocket SHIMANO CS-HG200-7 (12-32T)
chain KMC Z7 (114 links)
brakes APSE V-brake
brake levers SHIMANO ST-EF41-7 EZ-fire Plus
hubs SHIMANO TX500 / TY500-7 (32 holes)
rims KLS Draft 622x21 (32 holes / eyelets)
spokes steel
tires IMPAC Streetpac 37-622 (700x35C)
stem KLS Active - diam 28.6mm / bar bore 31.8mm / 8° / length 75mm (S), 90mm (M), 105mm (L)
handlebar KLS Active RiseBar - diam 31.8mm / rise 18mm / width 660mm
grips KLS Token
seat post KLS Active - diam 30.9mm / 350mm (S - M), 400mm (L)
saddle KLS SlipStream
pedals plastic
