Bottom Brackets

Code: 629835

FORCE BOTTOM BRACKET 119 BSA FE CUPS + FE BODY

encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 119 mm weight including bolts: 339 g packed in FORCE box

Code: 629845

FORCE CARTRIDGE BOTTOM BRACKET SET 124.5mm

# #### Product description encapsulated axle with screws black iron body, housing length: 68 mm black iron BSA cups with rubber sealing ring compatible with SHIMANO 89432, 89418 puller overall axle length: 124.5 mm weight including screws: 345 g packed in a FORCE paper box

Code: 630701B

SHIMANO BBUN26BY17B BSA 68 X 117 BOTTOM BRACKET

#### Description # square encased bottom bracket, BSA thread length of housing is 68 mm length of axle is 117 mm w/o screw packed in box

Code: 630681B

SHIMANO BBUN300B10 BSA 68 X 110 BOTTOM BRACKET

# square encased bottom bracket, BSA thread length of the housing is 68 mm length of axle is 110 mm w/o screw packed in box

Code: 62984

FORCE BOTTOM BRACKET 122.5 BSA FE CUPS + FE BODY

encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 122,5 mm weight including bolts: 345 g packed in FORCE bo

Code: 62982

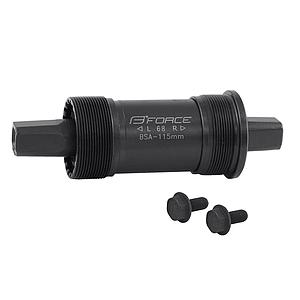

FORCE BOTTOM BRACKET 115 BSA FE CUPS + FE BODY

encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 113 mm weight including bolts: 327 g packed in FORCE box

Code: 6307151B

SHIMANO BBUN300B27B BSA 68 X 127 BOTTOM BRACKET

# square encased bottom bracket, BSA thread length of the housing is 68 mm length of axle is 127 mm w/o screw packed in box

Code: 62986

FORCE BOTTOM BRACKET 131 BSA FE CUPS + FE BODY

#### Description encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 131 mm weight including bolts: 351 g packed in FORCE box

Code: C2M401

BSA CARTRIDGE BOTTOM BRACKET SET 122.5 mm

# ACTIVE SEALED BOTTOM BRACKET Sealed bottom bracket KLS ACTIVE is made for all bikes which has cranks with common square bottom bracket mount DETAILS Sealed bearing Square Taper chainwheel mount BSA: BC1.37"x24T R/L 68mm Nylon cups 2 Allen screws Narrowed mid-section for internal routing OPTIONS Color: Black Length: 126; 124,5; 122,5; 119; 117,5; 116; 113; 110mm INCLUDED Nylon cups 2 Allen screws COMPATIBILITY Bicycles which has cranks with common square bottom bracket mount

Code: 630691B

SHIMANO BBUN300B13 BSA 68 X 113 BOTTOM BRACKET

# square encased bottom bracket, BSA thread length of the housing is 68 mm length of axle is 113 mm w/o screw packed in box

Code: 62981

FORCE BOTTOM BRACKET 113 BSA FE CUPS + FE BODY

encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 113 mm weight including bolts: 327 g packed in FORCE box

Code: 62980

FORCE CARTRIDGE BOTTOM BRACKET SET 110mm

# encased axle with lock bolts black steel body, length of the shell: 68 mm black steel BSA thread cups with sealing ring compatible with the puller SHIMANO 89432, 89418 total length of the axle: 110 mm weight including bolts: 321 g packed in FORCE box

Code: C2M398

BSA CARTRIDGE BOTTOM BRACKET SET 113mm

Code: 63087B

**SHIMANO BB-ES300B13Y BOTTOM BRACKET OCTALINK BSA 68 X113 mm

#### product description axis encapsulated OCTALINK, thread BSA length of housing/central sleeve 68 mm length of axis 113 mm without screws packed version in a box

Code: 450161

BMX ONE PIECE CRANK 165mm 1/2"

• Material: steel • Fauber - Pedals 1/2 • Bottom bracket shell width: 68 mm Technical specifications: * Crankarm lenght: 165 mm * Axle type: n.d. * Material: Steel * Colour: Silver

Bottom Brackets

FORCE BOTTOM BRACKET 119 BSA FE CUPS + FE BODY

FORCE CARTRIDGE BOTTOM BRACKET SET 124.5mm

SHIMANO BBUN26BY17B BSA 68 X 117 BOTTOM BRACKET

SHIMANO BBUN300B10 BSA 68 X 110 BOTTOM BRACKET

FORCE BOTTOM BRACKET 122.5 BSA FE CUPS + FE BODY

FORCE BOTTOM BRACKET 115 BSA FE CUPS + FE BODY

THREADLESS BOTTOM BRACKET 122mm

SHIMANO BBUN300B27B BSA 68 X 127 BOTTOM BRACKET

BOTTOM BRACKET 116mm BSA FE CUPS + FE BODY

FORCE BOTTOM BRACKET 131 BSA FE CUPS + FE BODY

BSA CARTRIDGE BOTTOM BRACKET SET 122.5 mm

SHIMANO BBUN300B13 BSA 68 X 113 BOTTOM BRACKET

FORCE BOTTOM BRACKET 113 BSA FE CUPS + FE BODY

FORCE CARTRIDGE BOTTOM BRACKET SET 110mm

THREADLESS BOTTOM BRACKET 127.5 mm

BSA CARTRIDGE BOTTOM BRACKET SET 113mm

THREADLESS BOTTOM BRACKET 119mm

THREADLESS BOTTOM BRACKET 110mm

**SHIMANO BSA SM-BB-MT501 68/73 mmHOLLOWTECH II BOTTOM BRACKET

**SHIMANO BB-ES300B13Y BOTTOM BRACKET OCTALINK BSA 68 X113 mm

FORCE BSA BOTTOM BRACKET CUP SET

BMX ONE PIECE CRANK 165mm 1/2"
